Brand Name : SCS
Place of Origin : Hubei, China
Packaging Details : Export package/nude packing
Supply Ability : 500 Set/Sets per Month
Price : CN¥335,866.02/sets >=1 sets
Condition : New
Steering : Left
Emission Standard : Euro 3
Segement : Medium-sized truck
Market Segement : Logistics transportation
Engine Brand : WEICHAI
Fuel Type : Diesel
Engine Capacity : 4 - 6L
Cylinders : 6
Horsepower : 351 - 450hp
Gear Box Brand : FAST
Transmission Type : Manual
Forward Shift Number : 12
Reverse Shift Number : 2
Maximum Torque(Nm) : 1000-1500Nm
Size : 11900*2495*3950
Cargo Tank Dimension : 9700*2550*2340(mm)
Cargo Tank length : ≥8m
Cargo Tank Type : Fence
Gross Vehicle Weight : >=30000 kg
Capacity (Load) : 21 - 30T
Fuel Tank Capacity : 100-200L
Drive Wheel : 8X4
Passengers : 3
Driver's Seat : Air suspension
Seat Rows : Half a row
Rear Camera : Camera
Cruise Control : Normal
ABS(Antilock Braking System) : None
ESC(Electronic Stability Control System) : None
Touch Screen : None
Multimedia System : Yes
Window : Manual
Air Conditioner : Manual
Tire Number : 12
After-sales Service Provided : Video technical support, Online support, Free spare parts
color : green or white
Chassis brand : JAC Chassis
Wheelbase : 1900+4500+1300
Loading capacity : 30-40 Ton
Transmission : Manual Transmission
Horse power : 380
Port : Shanghai
There are four basic models for customers’ different options:
lorry, tractor, dumper, and mixer.JAC heavy-duty truck is bound to put you in the lead to anywhere your business may take you.
| Model | HFC1314KR1LT | |
| Driving type | 8×4 | |
| Vehicle kerb mass (kg) | 16800 | |
| Max. gradeability(%) | 30 | |
| Overall dimensions (mm) Length×Width ×Height | 11990*2550*3500 | |
| Wheel base (mm) | 1900+4850+1350 | |
| Engine | WP12.380E32 | |
| Horse power | 380 | |
| Displacement(L) | 11.769 | |
| Fuel tank capacity (L) | 400L aluminium tank | |
| Tyre | 12.00R20 | |
| Gearbox | Transmission | 12JSD180T power take-off, 12 forward speeds, 2 reverse speeds. |
|
| Max. torque (N.m) | 2000 |
| Front axle | 9.5T front axle | |
| Drive axle | 16T×2 double reduction driving axle | |
| Steering | ZF technology LHD | |
| Frame type and specification | 850×300(8+7),straight beam. | |
| Suspension | Front and rear multiple leaf-springs, four main springs+ four U-type bolts | |
| Cab | lengthened flat cab, hydraulic suspension driver’s seat, one sleeping bed, A/C, Electric window machine, Electric flip ,metal bumper,Front headlight and rear taillight protection grid, water tank protection grid, oil-bath air filter
| |
| Carriage(mm) | 9700×2550x2340(mm) | |








We Runli Special Automobile CO.,LTD is the special truck factory located in China Special Truck Town, we are the famous manufacturer producing many kinds of special trucks for pressure tanks, construction, environment, oil, chemical fields. We are being in these field for over 10 years,we have rich experience in truck design, production, and manufacturing. Our registered trademark is Runzhixing, the abbreviation is SCS. It’s the“Famous Chinese Trade mark” in China. Our factory also has passed the China Compulsory Certification, and our current ISO certification is ISO 14001: 2004.
We have more than 300 kinds of trucks, nearly 1000 staffs.
In the last 15 years, we have exported various trucks to Africa, Asia, South America countries, such as Ghana, Serra Leoa,Sudan,Nigeria,Namibia, Tanzania,Tajikistan, North Korea, Iran, Iraq, Mongolia ,Vietnam, Malaysia, Philippines,Burma, Peru,Chile,Bolivia etc , we have exported to more than 35 countries more than 4,000 trucks every year.Our leading products include lpg tanks, lpg trucks, lpg trailers, water tank trucks, fuel tank trucks, garbage trucks, fire fighting trucks, van cargo trucks, trucks with crane, wrecker trucks, dump trucks, sewage suction tank trucks, fecal suction tank trucks, chemical tank trucks, cement mixer tank trucks, high pressure cleaning trucks, trailers etc.
Our products quality are reliable and prices are competitive, welcome friends all over the world to visit our factory, our whole factory is ready to provide good products and good service to you!




|
|

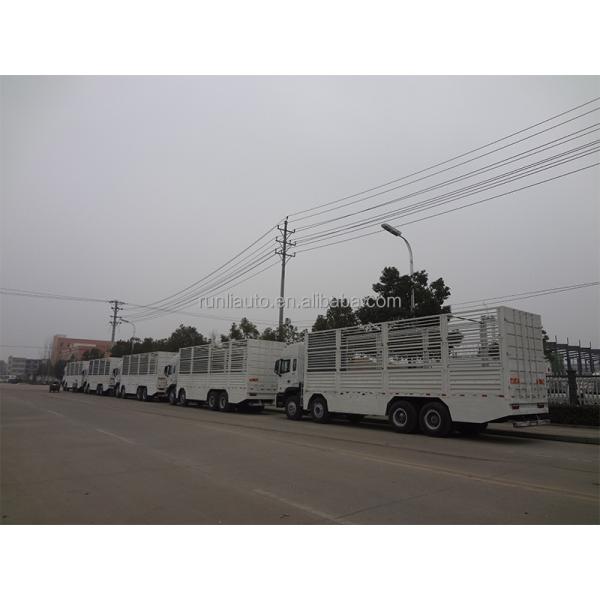

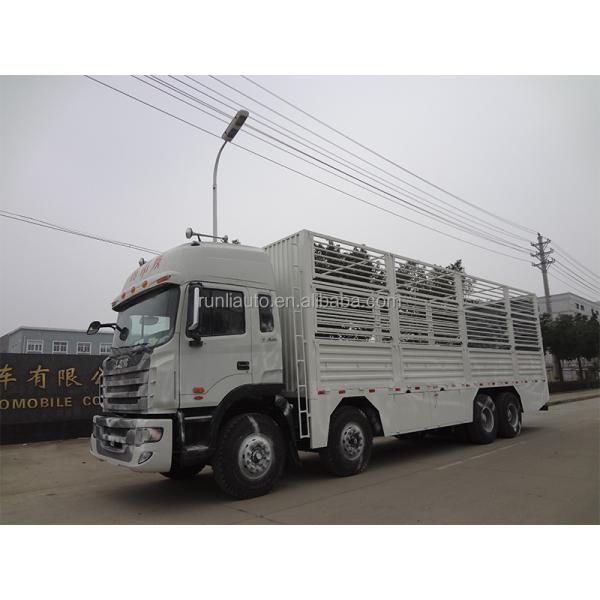

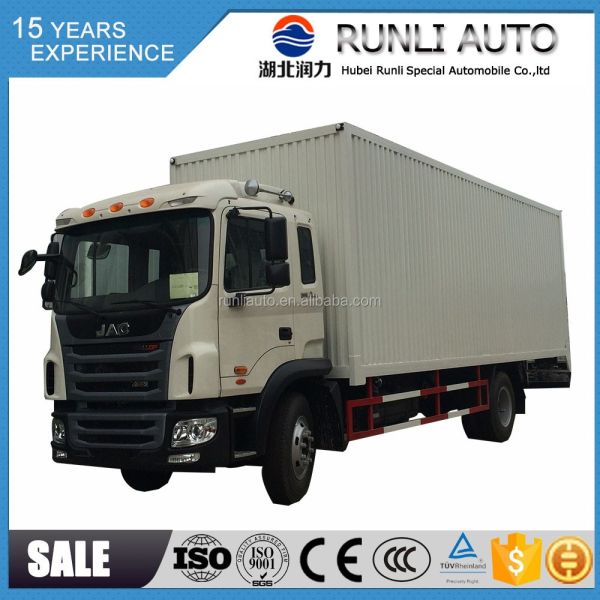

China JAC Heavy Duty Cargo Truck 8x4 JAC Van Truck Logistics Transportation Images |
